VR - Multiple camera positions.

The Multiple Views feature in VR allows you to store a series of camera positions which you can use with your Photo Realistic or HD renders.

To use, press the "Multiple Viewpoints" button on the VR control dialog.

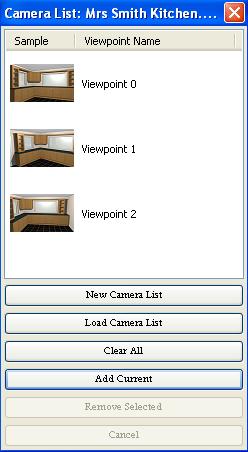

This brings up the Multiple Viewpoints dialog.

• New Camera List - creates a new list of camera positions. You will be prompted for a name for your list.
• Load Camera List - loads a previously created camera list.
• Clear all - remove all the currently stored views from this list.
• Add current - add the current VR camera position to the current list.
• Remove selected - remove the selected view from the list.

The list is automatically saved when you add/remove a view.

Once you have stored one or more positions, you can then render them in either Photo Realism or HD by clicking the "Photo" or "HD" buttons on the VR control box. NOTE - the thumbnail image next to the stored position will only appear after doing a Photo render of that view.

If you tick the "Store the renders" box on the VR control box the rendered views will be stored (same as clicking "View - Store Image") and are accessible in Page Layout through the "Image" button. NOTE - each time you do a render with the "Store the renders" box ticked it will add a new image to the stored images.
